LE-32

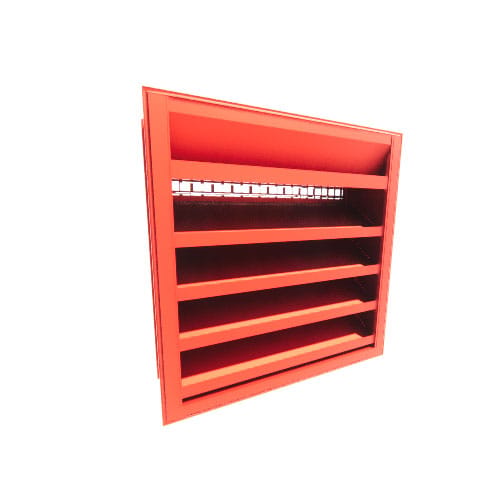

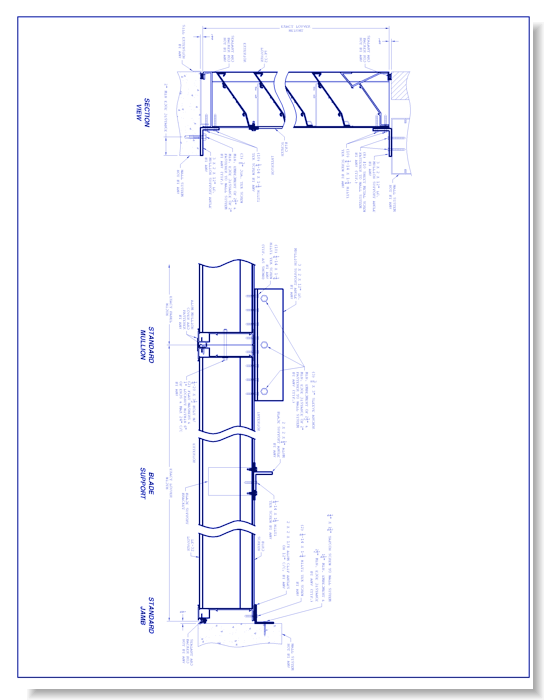

Fixed Drainable Louver: LE-32
Louver Depth: 6"Description: Fixed, Drainable Hurricane LouverFree Area: 9.24 sqft or 58%Water Peneration: 1250 fpmPressure Drop: 0.20 in w.g at 1193 fpm and 11023 scfmFrame Material: 0.125" Thick 6063-T5 Extruded AluminumBlades Material: 0.081" Thick 6063-T5 Extruded AluminumBlade Angle: 37.5 degreesBlade Spacing: 4"Blade Orientation: HorizontalScreen Options: Bird Screen, Insect ScreenMullion: Exposed or HiddenAMCA: Certified for Air Performance and Water PenetrationMiami - Dade: YesSightproof: No
LE-32
Fixed Drainable Louver: LE-32
Louver Depth: 6"Description: Fixed, Drainable Hurricane LouverFree Area: 9.24 sqft or 58%Water Peneration: 1250 fpmPressure Drop: 0.20 in w.g at 1193 fpm and 11023 scfmFrame Material: 0.125" Thick 6063-T5 Extruded AluminumBlades Material: 0.081" Thick 6063-T5 Extruded AluminumBlade Angle: 37.5 degreesBlade Spacing: 4"Blade Orientation: HorizontalScreen Options: Bird Screen, Insect ScreenMullion: Exposed or HiddenAMCA: Certified for Air Performance and Water PenetrationMiami - Dade: YesSightproof: No
