In 1904 American Warming and Ventilating was created as a division of American Furnace and Foundry Company in Bloomington, Indiana. The company began as a regional contractor that installed gravity heating systems. Today, architects, mechanical engineers, contractors and facility owners rely on American Warming and Ventilating to meet their ever-changing damper and louver designs and cost requirements through product innovation and technological advancement.
LE-36

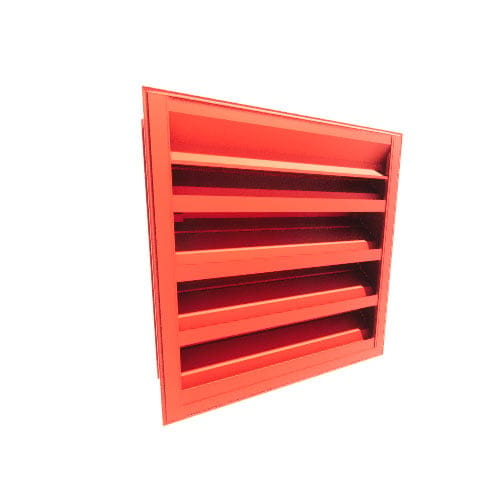

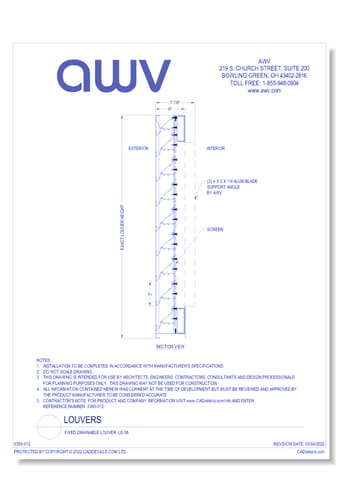

Fixed Drainable Louver: LE-36
Louver Depth: 6"Description: Hurricane LouverFree Area: 8.06 sqft or 50.4%Water Peneration: 946 fpmPressure Drop: 0.18 in w.g at 946 fpm and 7624 scfmFrame Material: 0.81"/0.125" Thick 6063-T5 Extruded AluminumBlades Material: 0.081" Thick 6063-T5 Extruded AluminumBlade Angle: 45 degreesBlade Spacing: 5"Blade Orientation: HorizontalScreen Options: Bird Screen, Insect ScreenMullion: Exposed or HiddenAMCA: Certified for Air Performance, Water Penetration and Wind-driven Rain; Listed for 540 Missile Impact and 550 High Velocity Wind-Driven Rain (optional wind driven rain insert required for 550)Miami - Dade: NoSightproof: Yes
LE-36
Fixed Drainable Louver: LE-36
Louver Depth: 6"Description: Hurricane LouverFree Area: 8.06 sqft or 50.4%Water Peneration: 946 fpmPressure Drop: 0.18 in w.g at 946 fpm and 7624 scfmFrame Material: 0.81"/0.125" Thick 6063-T5 Extruded AluminumBlades Material: 0.081" Thick 6063-T5 Extruded AluminumBlade Angle: 45 degreesBlade Spacing: 5"Blade Orientation: HorizontalScreen Options: Bird Screen, Insect ScreenMullion: Exposed or HiddenAMCA: Certified for Air Performance, Water Penetration and Wind-driven Rain; Listed for 540 Missile Impact and 550 High Velocity Wind-Driven Rain (optional wind driven rain insert required for 550)Miami - Dade: NoSightproof: Yes
- About
Asset Category Filters:
- Select All
- Media
- CAD PDF
- CAD DWF
- CAD DWG
- CAD GIF
- CAD VWX
- CAD DXF
- BIM Revit Family
- BIM Type Catalog
Products in same Family
VIEWING

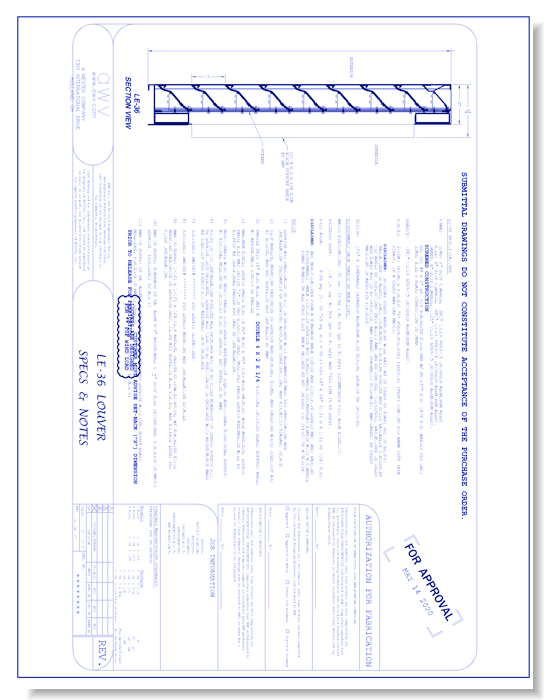

Fixed Drainable Louver: LE-36
