In 1904 American Warming and Ventilating was created as a division of American Furnace and Foundry Company in Bloomington, Indiana. The company began as a regional contractor that installed gravity heating systems. Today, architects, mechanical engineers, contractors and facility owners rely on American Warming and Ventilating to meet their ever-changing damper and louver designs and cost requirements through product innovation and technological advancement.
LE-44

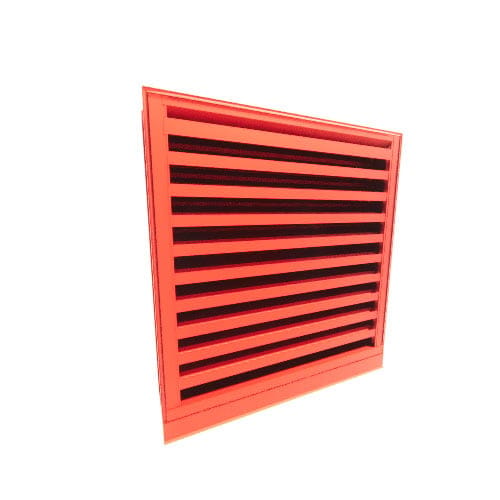

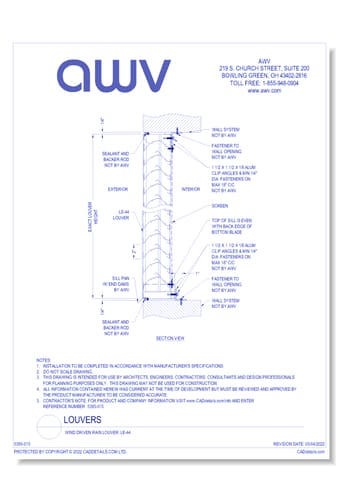

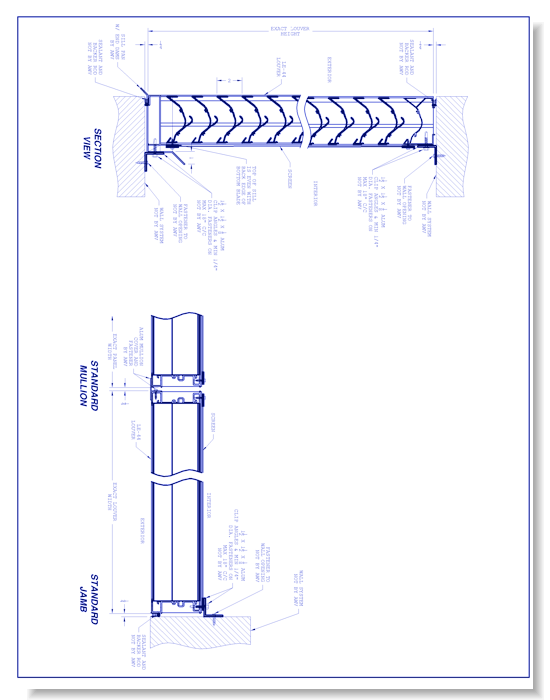

Wind Driven Rain Louver: LE-44
Louver Depth: 4"Description: Wind-Driven Rain LouverFree Area: 8.01 sqft or 50.1%Water Peneration: 1079.2 fpmPressure Drop: 0.41 in w.g at 1079.2 fpm and 8644 scfmFrame Material: 0.081" Thick 6063-T5 Extruded AluminumBlades Material: 0.060" Thick 6063-T5 Extruded AluminumBlade Angle: N/ABlade Spacing: 2"Blade Orientation: HorizontalScreen Options: Bird Screen, Insect ScreenMullion: Exposed or HiddenAMCA: Certified for Air Performance, Water Penetration and Wind-Driven RainMiami - Dade: NoSightproof: Yes
LE-44
Wind Driven Rain Louver: LE-44
Louver Depth: 4"Description: Wind-Driven Rain LouverFree Area: 8.01 sqft or 50.1%Water Peneration: 1079.2 fpmPressure Drop: 0.41 in w.g at 1079.2 fpm and 8644 scfmFrame Material: 0.081" Thick 6063-T5 Extruded AluminumBlades Material: 0.060" Thick 6063-T5 Extruded AluminumBlade Angle: N/ABlade Spacing: 2"Blade Orientation: HorizontalScreen Options: Bird Screen, Insect ScreenMullion: Exposed or HiddenAMCA: Certified for Air Performance, Water Penetration and Wind-Driven RainMiami - Dade: NoSightproof: Yes
