AWV
In 1904 American Warming and Ventilating was created as a division of American Furnace and Foundry Company in Bloomington, Indiana. The company began as a regional contractor that installed gravity heating systems. Today, architects, mechanical engineers, contractors and facility owners rely on American Warming and Ventilating to meet their ever-changing damper and louver designs and cost requirements through product innovation and technological advancement.

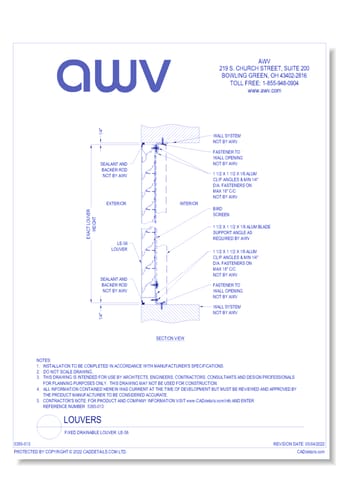

LE-58

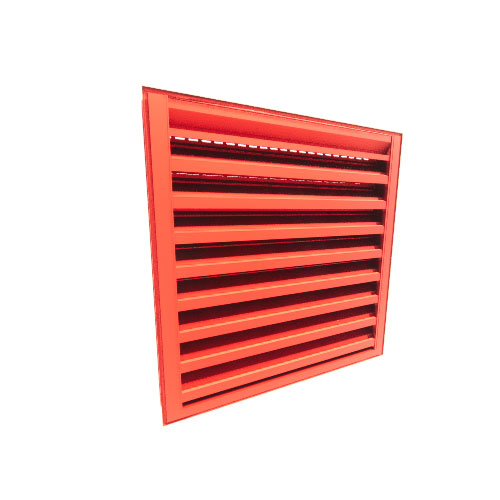

Fixed Drainable Louver: LE-58
Louver Depth: 2"Description: Thin line, Fixed, Drainable LouverFree Area: 7.77 sqft or 49%Water Peneration: 872 fpmPressure Drop: 0.15 in w.g at 872 fpm and 6775 scfmFrame Material: 0.063" Thick 6063-T5 Extruded AluminumBlades Material: 0.063" Thick 6063-T5 Extruded AluminumBlade Angle: 45 degreesBlade Spacing: 2.5"Blade Orientation: HorizontalScreen Options: Bird Screen, Insect ScreenMullion: Exposed or HiddenAMCA: Certified for Air Performance and Water PenetrationMiami - Dade: NoSightproof: No
LE-58
Fixed Drainable Louver: LE-58
Louver Depth: 2"Description: Thin line, Fixed, Drainable LouverFree Area: 7.77 sqft or 49%Water Peneration: 872 fpmPressure Drop: 0.15 in w.g at 872 fpm and 6775 scfmFrame Material: 0.063" Thick 6063-T5 Extruded AluminumBlades Material: 0.063" Thick 6063-T5 Extruded AluminumBlade Angle: 45 degreesBlade Spacing: 2.5"Blade Orientation: HorizontalScreen Options: Bird Screen, Insect ScreenMullion: Exposed or HiddenAMCA: Certified for Air Performance and Water PenetrationMiami - Dade: NoSightproof: No
- About
Asset Category Filters:
- Select All
- Media
- CAD PDF
- CAD DWF
- CAD DWG
- CAD GIF
- CAD VWX
- CAD DXF
- BIM Revit Family
- BIM Type Catalog
Products in same Family
VIEWING
Fixed Drainable Louver: LE-58
