In 1904 American Warming and Ventilating was created as a division of American Furnace and Foundry Company in Bloomington, Indiana. The company began as a regional contractor that installed gravity heating systems. Today, architects, mechanical engineers, contractors and facility owners rely on American Warming and Ventilating to meet their ever-changing damper and louver designs and cost requirements through product innovation and technological advancement.
LE-73

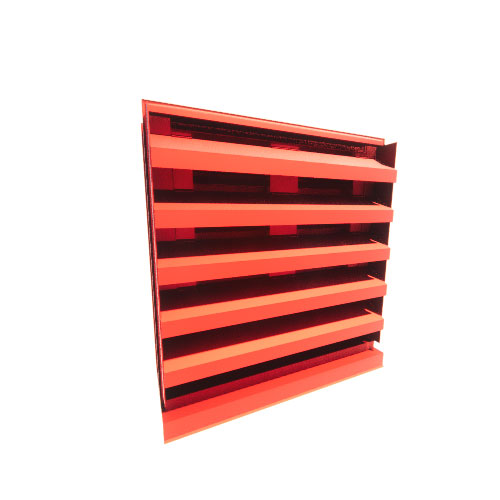

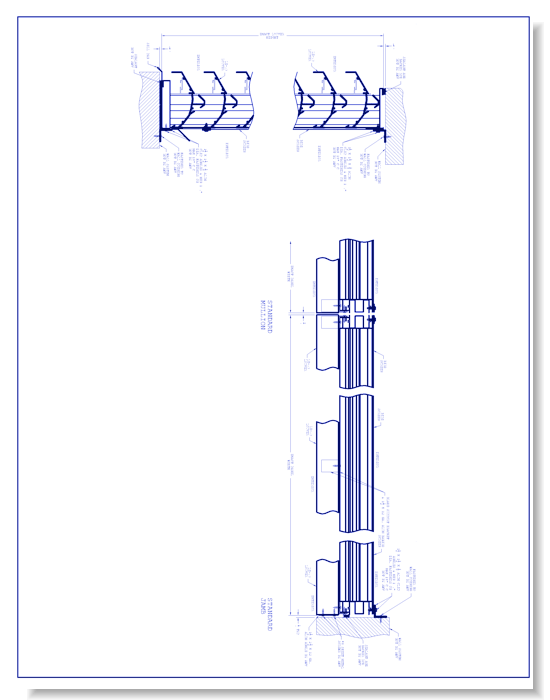

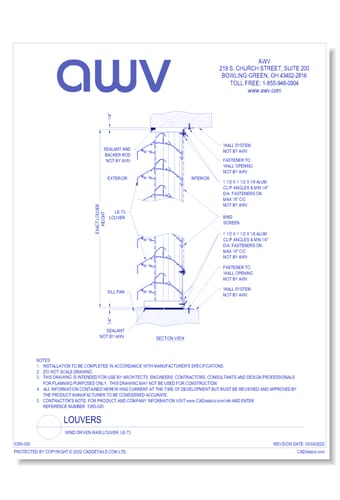

Wind Driven Rain Louver: LE-73
Louver Depth: 7"Description: Wind-Driven Rain LouverFree Area: 7.36 sqft or 46%Water Peneration: 1250 fpmPressure Drop: 0.18 in w.g at 649 fpm and 4777 scfmFrame Material: 0.081" Thick 6063-T5 Extruded AluminumBlades Material: 0.081" Thick 6063-T5 Extruded AluminumBlade Angle: N/ABlade Spacing: 3.5"Blade Orientation: HorizontalScreen Options: Bird Screen, Insect ScreenMullion: Exposed or HiddenAMCA: Certified for Air Performance, Water Penetration and Wind-Driven RainMiami - Dade: NoSightproof: Yes
LE-73
Wind Driven Rain Louver: LE-73
Louver Depth: 7"Description: Wind-Driven Rain LouverFree Area: 7.36 sqft or 46%Water Peneration: 1250 fpmPressure Drop: 0.18 in w.g at 649 fpm and 4777 scfmFrame Material: 0.081" Thick 6063-T5 Extruded AluminumBlades Material: 0.081" Thick 6063-T5 Extruded AluminumBlade Angle: N/ABlade Spacing: 3.5"Blade Orientation: HorizontalScreen Options: Bird Screen, Insect ScreenMullion: Exposed or HiddenAMCA: Certified for Air Performance, Water Penetration and Wind-Driven RainMiami - Dade: NoSightproof: Yes
