Filtrine Manufacturing Company
Founded in 1901, Filtrine is an innovative leader in the design and manufacture of custom-built high-quality stainless steel, bronze, corian and marble drinking water fountains; bottle fillers; drinking water chillers; water purification and filtration systems. Filtrine® products are engineered and built with pride in the USA. Approvals and certifications include NSF/ANSI 372-2011: Drinking Water System Components – Lead Content, ETL Listed (CE Mark Available), and ISO-9001-2008 Certified.
Bottle Filling Stations: FCC-B103

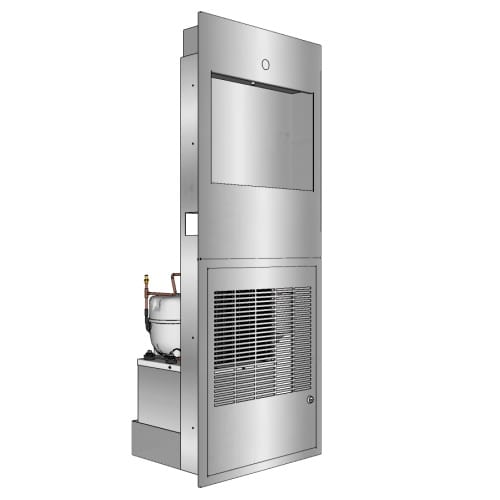

Bottle Filling Stations: FCC-B103 In-Wall Bottle Filler and Chiller/Purifier
Each Model FCC-B103 is individually constructed with a one-piece cover plate. The exterior is made without seams, exposed edges or screws. The sleek, low maintenance modern design is available with limitless finish options, customized logos, and ability to fit in a standard 4" wall. Specify the height based on your requirements. The Taste Master Purifier features 0.5 micron element to remove suspended solids, chlorine taste/odors and water-borne pathogens such as cysts. The chiller has a cooling capacity of 9 gph at 50°F.Receptor 16 and 18 Ga. Stainless SteelPurifier Taste Master PurifierChiller 86A chiller with 2 gallon insulated stainless steel tank, charged with HFO R513A "Ozone Safe - Low GWP" refrigerantStandard Features Locking front panel
Bottle Filling Stations: FCC-B103
Bottle Filling Stations: FCC-B103 In-Wall Bottle Filler and Chiller/Purifier
Each Model FCC-B103 is individually constructed with a one-piece cover plate. The exterior is made without seams, exposed edges or screws. The sleek, low maintenance modern design is available with limitless finish options, customized logos, and ability to fit in a standard 4" wall. Specify the height based on your requirements. The Taste Master Purifier features 0.5 micron element to remove suspended solids, chlorine taste/odors and water-borne pathogens such as cysts. The chiller has a cooling capacity of 9 gph at 50°F.Receptor 16 and 18 Ga. Stainless SteelPurifier Taste Master PurifierChiller 86A chiller with 2 gallon insulated stainless steel tank, charged with HFO R513A "Ozone Safe - Low GWP" refrigerantStandard Features Locking front panel
- About
Asset Category Filters:
- Select All
- Media

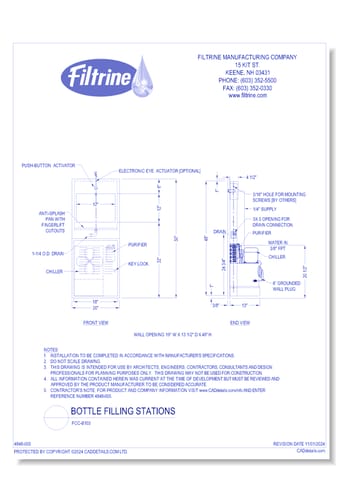

- CAD PDF
