Hunter Industries Collections Valves PGV Valves
Hunter Industries logo

Hunter Industries

Hunter Industries is among the world's leading manufacturers of water-efficient irrigation products. Hunter's valves, controllers and sprinklers provide healthy, aesthetically pleasing landscapes worldwide. Hunter helps ensure the success of all of its partners - from distributors to contractors to the end-use consumer - by providing a wide range of technical support programs, education / training initiatives, and business development initiatives. Hunter: The Irrigation Innovators.

Hunter Industries logo

Hunter Industries

Click to Call

1940 Diamond Street, San Marcos, CA, 92078

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
PGV Valves preview 1

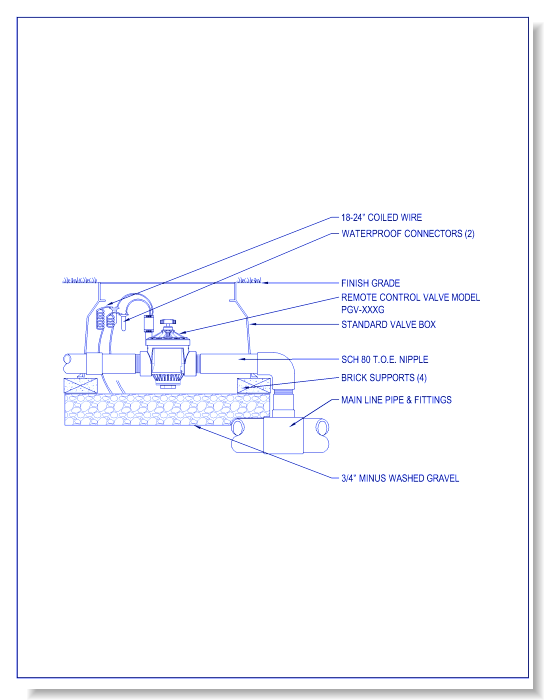

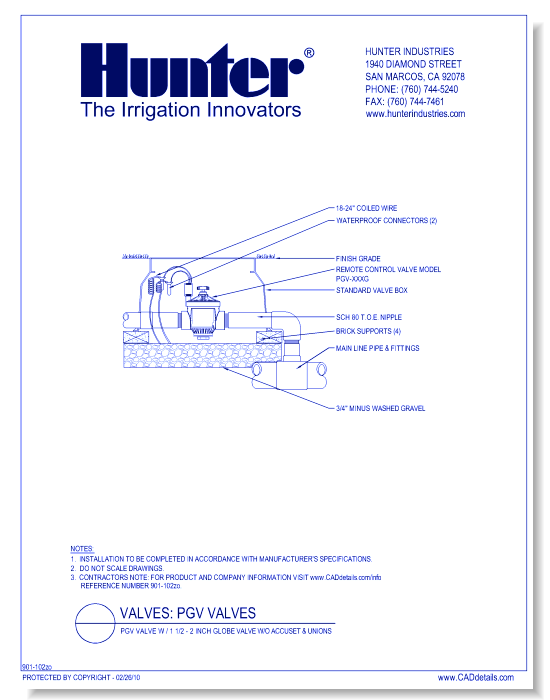

Valves - PGV-151 - 2001G - PGV Valve w / 1 1/2 - 2 Inch Globe Valve w/o Accuset & Unions
Valves - PGV-151 - 2001G - PGV Valve w / 1 1/2 - 2 Inch Globe Valve w/o Accuset & Unions
Valves - PGV-151 - 2001G - PGV Valve w / 1 1/2 - 2 Inch Globe Valve w/o Accuset & Unions
PGV Valves preview 1
CAD Preview
Mfg DWG Preview (Imperial)
3D Preview
PGV Valves

Valves - PGV-151 - 2001G - PGV Valve w / 1 1/2 - 2 Inch Globe Valve w/o Accuset & Unions

This hard working, heavy-duty valve offers the best features of Hunter’s top-of-the-line valves. Built with enough durability to handle the rigors of most residential and light commercial sites, the PGV is available in an array of configurations. For smaller landscape applications, the PGV is available in four 1" body configurations: angle, globe, male x male, or male x barb design. In turn, each model is available in either a flow control or non-flow control version. For larger landscape applications, the PGV comes in both 1-1/2" and 2" globe/angle models (with flow control). All models feature durable high-grade construction and a rugged diaphragm with support to prevent stress failure.
PGV Valves

Valves - PGV-151 - 2001G - PGV Valve w / 1 1/2 - 2 Inch Globe Valve w/o Accuset & Unions

This hard working, heavy-duty valve offers the best features of Hunter’s top-of-the-line valves. Built with enough durability to handle the rigors of most residential and light commercial sites, the PGV is available in an array of configurations. For smaller landscape applications, the PGV is available in four 1" body configurations: angle, globe, male x male, or male x barb design. In turn, each model is available in either a flow control or non-flow control version. For larger landscape applications, the PGV comes in both 1-1/2" and 2" globe/angle models (with flow control). All models feature durable high-grade construction and a rugged diaphragm with support to prevent stress failure.
