Mapes Industries, Inc.

Design content meets industry standards for being specified into a project.

Mapes Industries is a family owned business that has manufactured specialty architectural products since 1952. Our economical roll formed Lumishade and all extruded Super Lumideck have set the standard for metal canopies and metal awnings.

Click to Call

2929 Cornhusker Hwy. P.O. Box 80069, Lincoln, NE, 68504

Website

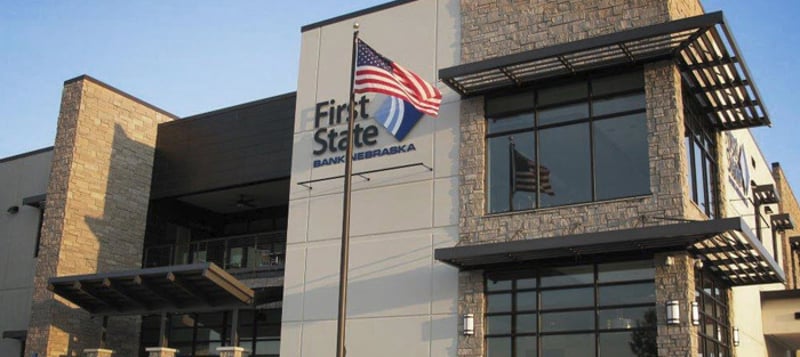

Bank

First State Bank | Nebraska

Location:Lincoln, NE, USA

Architect:Archi + Etc. LLC

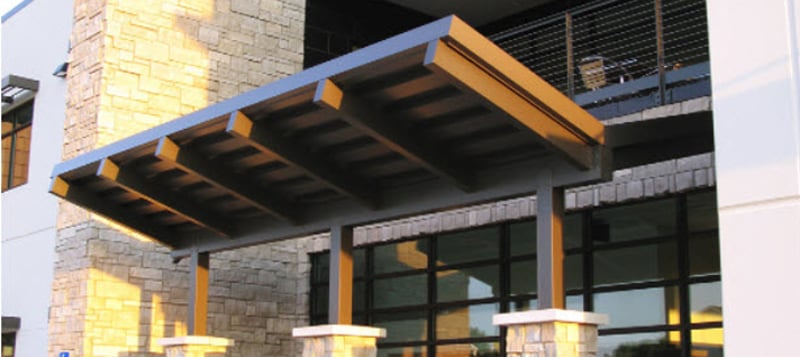

MAPES “SUPERSHADE” STYLE SUNSHADES – Standard Design Featured Sunshades: Outside Corner “SuperShade” style canopy with hanger rod support — 4’ projection with legs 19’ long on each side SuperShade Materials: All rust-proof extruded aluminum Finish: Mapes Standard Bronze Baked Enamel Structural Canopy Support: Overhead hanger rods & lower attachment points through bolted thru tilt wall with crush sleeves for masonry veneer Louver: Standard 8" tall extruded aluminum set at 45 degree back slant Fascia: Standard 8" tall “J” style Drainage: Standard front scupper—acts as weeps on SuperShades Mapes “Superlumideck” Style Entrance Canopy – Custom Design Dimensions: Nominal 20' wide x 11' wide x 10' clearance Mapes ”Super Lumideck” style all rust-proof extruded aluminum Decking: Mapes standard 2 ¾ deck style running with the length Primary supporting beam at base of angled beams, running in the long direction, 6" x 10" Primary support posts: 6" x 6" supporting primary beam set into concrete with decorative masonry columns Fascia: Standard 6" tall, all sides Drainage: Choice of scupper or external standard downspout leaders Note: This project utilized many Mapes canopies and sunshades on all sides.
