Quikserv SS-4035E / IF-4035E Single Sliding Transaction Window
Quikserv logo

Quikserv

For over 30 years, Quikserv has been a premier manufacturer and distributor of pass-thru systems. Based in Houston TX, we strive to provide outstanding customer service throughout your experience. Our attention to detail, expert craftsmanship, and dedication to quality components and products have made us a leader in the industry. Quikserv specializes in stainless steel and aluminum fabrication. Product lines include drive-thru windows, transaction drawers, air curtains, deal trays, pharmacy windows and drawers, ticket windows, and other bullet-resistant products. Quikserv products are designed with optimal functionality in mind and are unsurpassed in durability and performance. Whether you order an individual unit or a combination of products, we can meet your requirements and make the pass-thru portion of your business more reliable, efficient, and secure. We can even custom design products to match your unique specifications and needs.

Quikserv logo

Quikserv

Click to Call

11441 Brittmoore Park Drive, Houston, TX, 77041

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
SS-4035E / IF-4035E Single Sliding Transaction Window preview 1 SS-4035E / IF-4035E Single Sliding Transaction Window preview 2 SS-4035E / IF-4035E Single Sliding Transaction Window preview 3 SS-4035E / IF-4035E Single Sliding Transaction Window preview 4
Single Sliding Transaction Window (SS-4035E / IF-4035E)
Single Sliding Transaction Window (SS-4035E / IF-4035E)
SS-4035E / IF-4035E Single Sliding Transaction Window preview 1
SS-4035E / IF-4035E Single Sliding Transaction Window preview 2
SS-4035E / IF-4035E Single Sliding Transaction Window preview 3
SS-4035E / IF-4035E Single Sliding Transaction Window preview 4

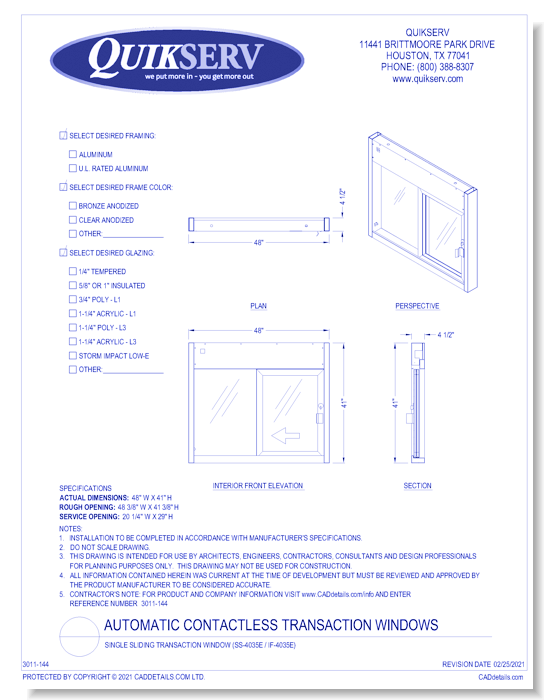

CAD Preview

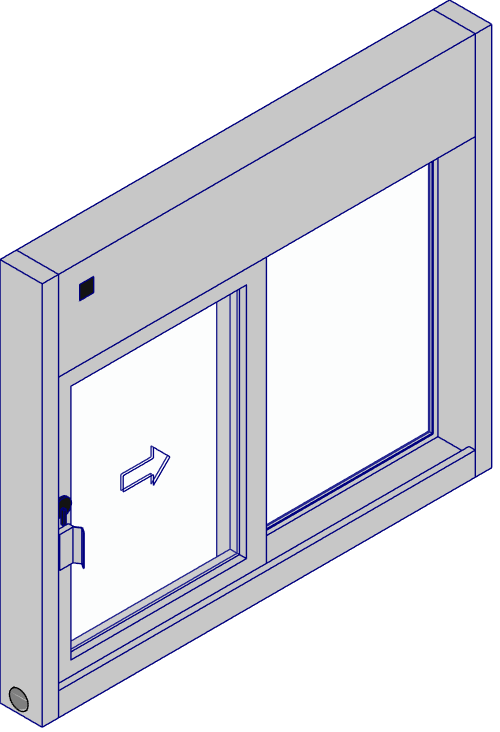

3D Preview
SS-4035E / IF-4035E Single Sliding Transaction Window

Single Sliding Transaction Window (SS-4035E / IF-4035E)

This 48"W x 41"H side-sliding transaction window is one of our most popular windows to date! These models are self-closing, top hung, and have single sliders. We make both manual opening and fully automatic contactless versions. These units passed large and small impact testing, as well as water infiltration requirements. This series of single sliders has the same excellent quality you have come to expect from Quikserv sliding windows. This flush-mount, fully automatic, single slider glides smoothly on a top-hung slide rail system. The transaction window unit is either right or left handed, depending on your needs. An offset in the base prevents outside intrusion and repels water from entering into your establishment. The photo-electric eye-bar is available for all electric sliders.  SS-4035E and IF-4035E Unit Size: 48"W x 41"H Service Opening: 20-3/4"W x 29"H  SS-4035E: 1/4" clear tempered safety glass IF-4035E: 1" clear tempered insulated glass units
SS-4035E / IF-4035E Single Sliding Transaction Window

Single Sliding Transaction Window (SS-4035E / IF-4035E)

This 48"W x 41"H side-sliding transaction window is one of our most popular windows to date! These models are self-closing, top hung, and have single sliders. We make both manual opening and fully automatic contactless versions. These units passed large and small impact testing, as well as water infiltration requirements. This series of single sliders has the same excellent quality you have come to expect from Quikserv sliding windows. This flush-mount, fully automatic, single slider glides smoothly on a top-hung slide rail system. The transaction window unit is either right or left handed, depending on your needs. An offset in the base prevents outside intrusion and repels water from entering into your establishment. The photo-electric eye-bar is available for all electric sliders.  SS-4035E and IF-4035E Unit Size: 48"W x 41"H Service Opening: 20-3/4"W x 29"H  SS-4035E: 1/4" clear tempered safety glass IF-4035E: 1" clear tempered insulated glass units
