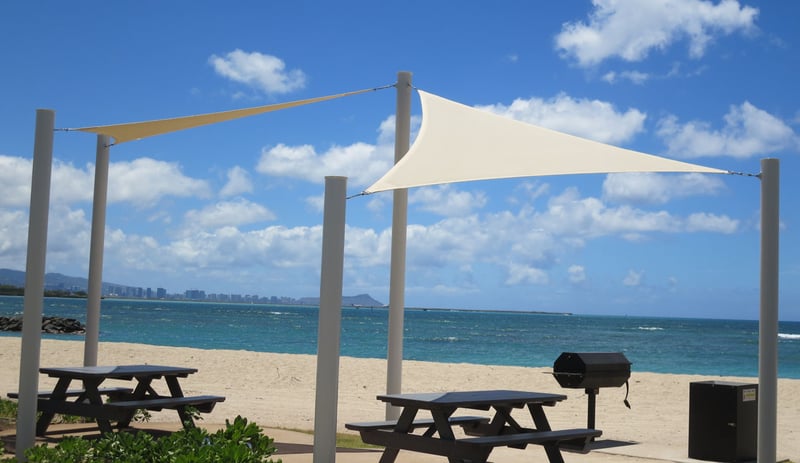

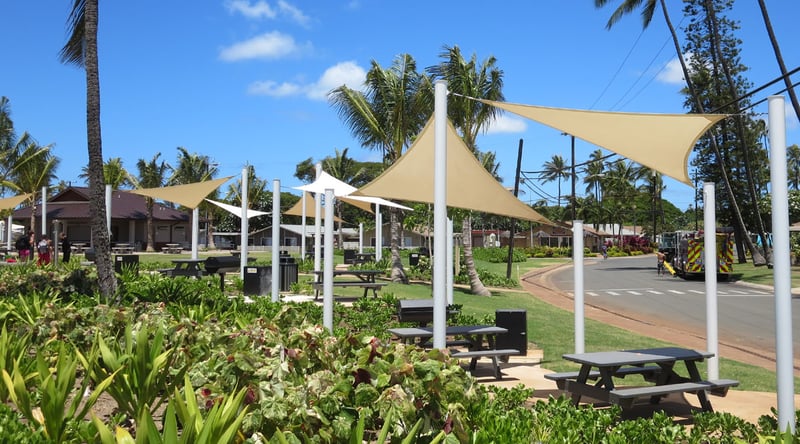

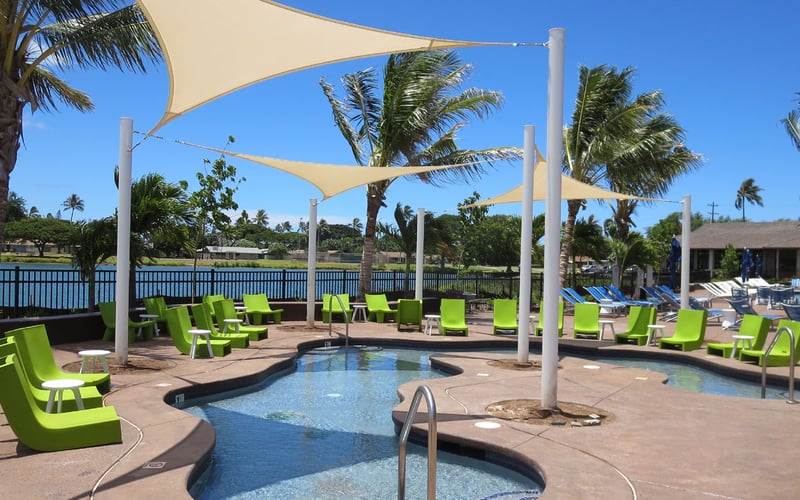

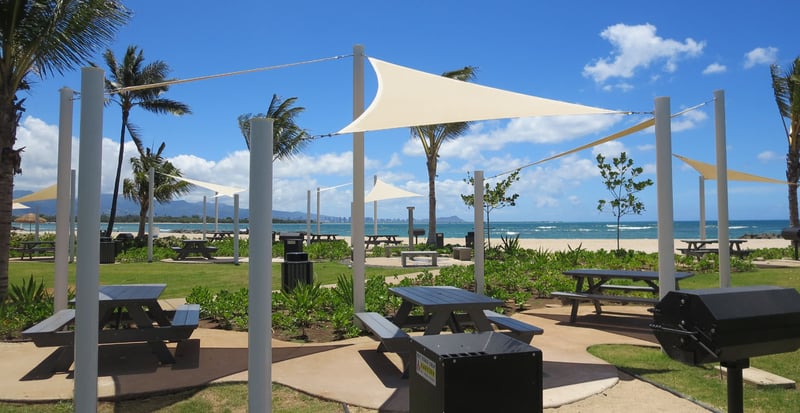

Tension Structures worked closely with Carmel Partners to design, engineer and install Tensioned Shade Sails throughout the Waterfront Beach Park, and over the new Community Center Kiddie Pool in Ewa Beach, Hawaii. Being in a “hurricane prone” region, the shade structures are engineered for 105 MPH Wind-Loads, Exposure “D”. Concrete footings for the upright posts were poured throughout the sand areas of the property to meet the Hurricane Prone and Windborne Debris Region. This project consists of twenty-five (25) triangular-shaped tensioned shade sails on the beach front property. There are twenty-two (22) Ewa Beach canopies (14' x 14' x 14'), and three (3) Community Center Kiddie Pool shade sails (20' x 20' x 20'), with upright columns ranging from 8' to 14' high. Cream Monotec 370 FR fabric (by Value Vinyls) are attached to support columns engineered for 105 MPH Wind-Loads, Exposure “D”; and Seismic Design Category “D”. TENSIONED SHADE SAILS • Total of twenty-five (25) Tensioned Shade Sail Canopies • Approximate combined coverage area is 1,051 SF • Flame-retardant, Monotec 370 FR fabric by Value Vinyls • Engineered for 105 MPH Wind-Loads, Exposure “D” • Seismic Design Category “D” • Upright Columns Sizes range from 8' to 14' High EWA BEACH • Twenty-two (22) Shade Sail Canopies • Approximate combined shade coverage area is 880 SF • Dimensions: 14’ x 14’ x 14’ each EWA COMMUNITY CENTER • Three (3) Shade Sail Canopies • Approximate combined shade coverage area is 171 SF • Dimensions: 20’ x 20’ x 20’ each
