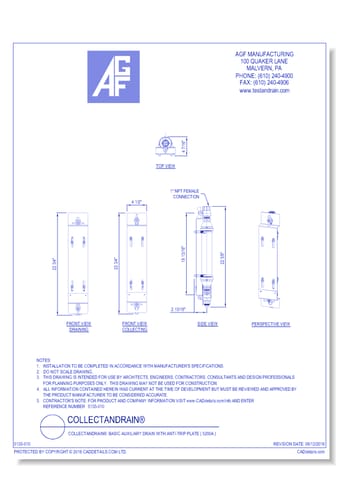

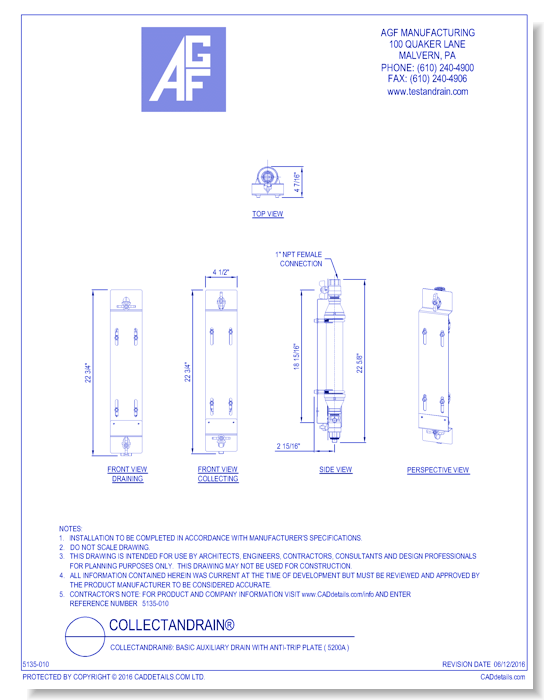

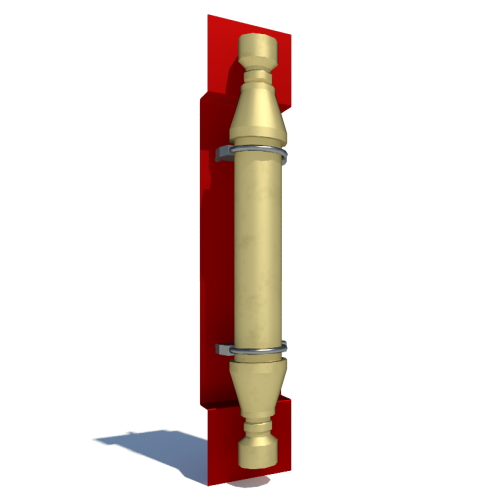

COLLECTanDRAIN®: Basic Auxiliary Drain with Anti-Trip Plate ( 5200A )
COLLECTanDRAIN®: Basic Auxiliary Drain with Anti-Trip Plate ( 5200A )
COLLECTanDRAIN® Model 5200A preview 1
CAD Preview
3D Preview
COLLECTanDRAIN® Model 5200A

COLLECTanDRAIN®: Basic Auxiliary Drain with Anti-Trip Plate ( 5200A )

The COLLECTanDRAIN® Model 5200A Auxiliary Drain features a patented, AGF Anti-Trip Plate (ATP) which prevents the opening of the upper collection or lower drain valve unless the opposite valve is in the closed position (as per NFPA guidelines) detering vandalism and improper maintenance.
COLLECTanDRAIN® Model 5200A

COLLECTanDRAIN®: Basic Auxiliary Drain with Anti-Trip Plate ( 5200A )

The COLLECTanDRAIN® Model 5200A Auxiliary Drain features a patented, AGF Anti-Trip Plate (ATP) which prevents the opening of the upper collection or lower drain valve unless the opposite valve is in the closed position (as per NFPA guidelines) detering vandalism and improper maintenance.
