AGF Manufacturing Collections Inspector's TEST™ Inspector'sTEST™ Model 3011A
AGF Manufacturing logo

AGF Manufacturing

AGF Manufacturing Inc. fabricates specialized products for the Fire Protection Industry and was founded on the principles of reliability, versatility, and compatibility. Over the years AGF has introduced a number of original products that accommodate the varying demands of the fire protection industry and we are continually working in the field to improve existing products and introduce new ones. While addressing the needs of fire protection we strive to provide the best products backed by a strong commitment to customer service. Our close interaction with the fire protection community has helped us introduce a beneficial product line. By engineering more intuitive products AGF helps you manage your fire safety systems more efficiently, resulting in more reliable systems that save resources.

AGF Manufacturing logo

AGF Manufacturing

Click to Call

100 Quaker Lane, Malvern, PA, 19355

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
Inspector'sTEST™ Model 3011A preview 1 Inspector'sTEST™ Model 3011A preview 2
Ball Valve with Pressure Relief Valve ( 3011A )
Ball Valve with Pressure Relief Valve ( 3011A )
Inspector'sTEST™ Model 3011A preview 1
Inspector'sTEST™ Model 3011A preview 2
MFG CAD Preview
3D Preview
Inspector'sTEST™ Model 3011A

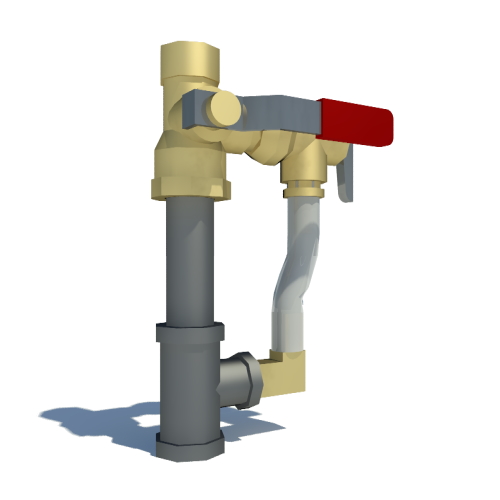

Ball Valve with Pressure Relief Valve ( 3011A )

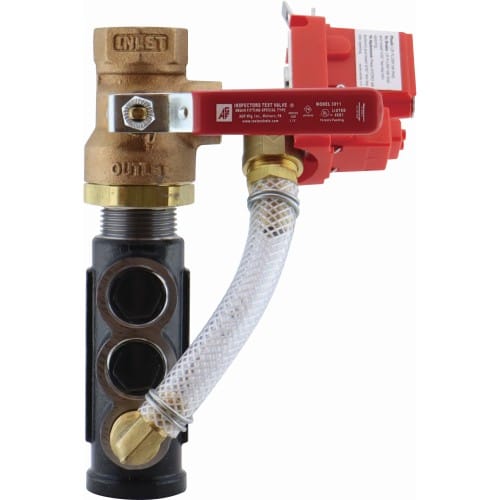

The AGF Model 3011 Inspector'sTEST® family of valves are designed to perform the remote inspector's test function on single story systems and other applications with the benefit of locating the orifice indoors. The Inspector'sTEST is available in four different models (M3011BV, M3011SG, M3011A, and M3011ASG) with optional orifice sizes (3/8" 2.8K, 7/16" 4.2K, 1/2" 5.6K, 17/32" 8.0K, and 5/8" 11.2K ELO). The Model 3011A and 3011ASG feature a Model 7000 Pressure Relief Valve rated at 175 PSI with drainage piping designed to relieve excess system pressure caused by surges or temperature changes. Both models solve the difficult problem of providing the relief valve with a drainage piping outlet while complying with NFPA 13 requiring installation of a pressure relief valve on all grided systems and downstream of all pressure reducing valves.To expedite system testing every Inspector'sTEST model is shipped semi-assembled with relief valve and bypass drain ports plugged.
Inspector'sTEST™ Model 3011A

Ball Valve with Pressure Relief Valve ( 3011A )

The AGF Model 3011 Inspector'sTEST® family of valves are designed to perform the remote inspector's test function on single story systems and other applications with the benefit of locating the orifice indoors. The Inspector'sTEST is available in four different models (M3011BV, M3011SG, M3011A, and M3011ASG) with optional orifice sizes (3/8" 2.8K, 7/16" 4.2K, 1/2" 5.6K, 17/32" 8.0K, and 5/8" 11.2K ELO). The Model 3011A and 3011ASG feature a Model 7000 Pressure Relief Valve rated at 175 PSI with drainage piping designed to relieve excess system pressure caused by surges or temperature changes. Both models solve the difficult problem of providing the relief valve with a drainage piping outlet while complying with NFPA 13 requiring installation of a pressure relief valve on all grided systems and downstream of all pressure reducing valves.To expedite system testing every Inspector'sTEST model is shipped semi-assembled with relief valve and bypass drain ports plugged.
