Cable Connection, The (Ultra-tec Cable Railing)
The Cable Connection was established in 1991. Its principals have been in the wire rope business for over thirty years and are specialists in manufacturing cable assemblies and fittings for up to 3/8 in. diameter cable. Since 1998, Ultra-tec® Cable Railing Infill has been a favorite of architects, specifiers, and builders. With its signature Invisiware® fittings that are concealed inside the end post and sleekly designed outside-the-post fittings, Ultra-tec® Cable Railing Infill provides an attractive alternative to conventional barrier rail systems and can be found in projects throughout North America.

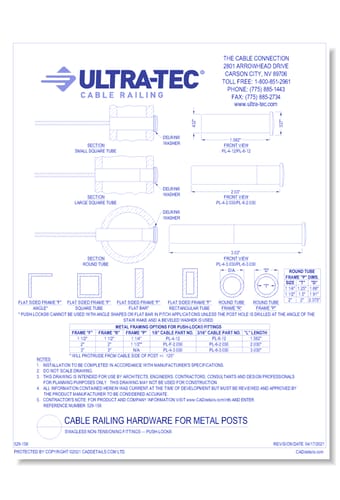

Cable Railing Hardware for Metal Posts — Push-Lock®
Swagless Non-Tensioning Fittings — Push-Lock®
The Push-Lock® is a concealed, swageless, non-tensioning, through-the-post-mounted fitting that is suitable for use on level runs only, and is available for 1/8” and 3/16” diameter 1x19 stainless steel cable.The Push-Lock® fitting must be used with a tensioning fitting on the opposite end of the run. This fitting is installed into a pre-drilled hole in the end post. Using the Push-Lock® fitting requires enough clearance on the back side of the end post (to install the fitting through the back side of the post) and that amount of clearance depends on the length of the Push-Lock® fitting chosen. This fitting is furnished with a Delrin® washer that is installed between the shoulder of the fitting and the end post to protect the surface of the finish of the end post as tension is applied. It is recommended that you choose a length of Push-Lock® that is the same as the cross section dimension of the end post. The cable attaches to the fitting via our Push-Lock® locking wedge system which requires no special tools.This fitting is made to look similar to the Invisiware® Receiver from the exterior of the post, so it is recommended to use a Receiver with stud on the opposite end whenever practical to maintain a consistent look.
Cable Railing Hardware for Metal Posts — Push-Lock®
Swagless Non-Tensioning Fittings — Push-Lock®
The Push-Lock® is a concealed, swageless, non-tensioning, through-the-post-mounted fitting that is suitable for use on level runs only, and is available for 1/8” and 3/16” diameter 1x19 stainless steel cable.The Push-Lock® fitting must be used with a tensioning fitting on the opposite end of the run. This fitting is installed into a pre-drilled hole in the end post. Using the Push-Lock® fitting requires enough clearance on the back side of the end post (to install the fitting through the back side of the post) and that amount of clearance depends on the length of the Push-Lock® fitting chosen. This fitting is furnished with a Delrin® washer that is installed between the shoulder of the fitting and the end post to protect the surface of the finish of the end post as tension is applied. It is recommended that you choose a length of Push-Lock® that is the same as the cross section dimension of the end post. The cable attaches to the fitting via our Push-Lock® locking wedge system which requires no special tools.This fitting is made to look similar to the Invisiware® Receiver from the exterior of the post, so it is recommended to use a Receiver with stud on the opposite end whenever practical to maintain a consistent look.
