1-800-Bollards Low Speed Crash Tested Fixed Bollards
1-800-Bollards logo

1-800-Bollards

Design content meets industry standards for being specified into a project. Meets industry standards for quality and usability. Optimized for seamless project integration. Maintained for accuracy and performance.

1-800-BOLLARDS is a Woman-Owned business and supplier of architectural and security bollards that protect property, assets and people across the world. Since 2008, 1-800-BOLLARDS, Inc. has supplied bollards to major retailers, stadiums and arenas, cities and municipalities, government facilities, colleges and universities to name a few.

1-800-Bollards logo

1-800-Bollards

Click to Call

10-Hughes Suite A-105, Irvine, CA, 92618

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
Low Speed Crash Tested Fixed Bollards preview 1 Low Speed Crash Tested Fixed Bollards preview 2 Low Speed Crash Tested Fixed Bollards preview 3 Low Speed Crash Tested Fixed Bollards preview 4
30 MPH Low Speed Crash Tested Fixed Bollard - 8" Diameter
30 MPH Low Speed Crash Tested Fixed Bollard - 8" Diameter
Low Speed Crash Tested Fixed Bollards preview 1
Low Speed Crash Tested Fixed Bollards preview 2
Low Speed Crash Tested Fixed Bollards preview 3
Low Speed Crash Tested Fixed Bollards preview 4

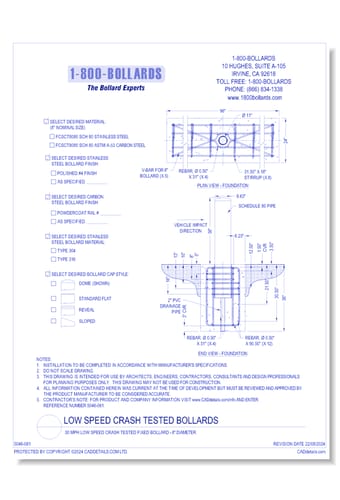

CAD Preview

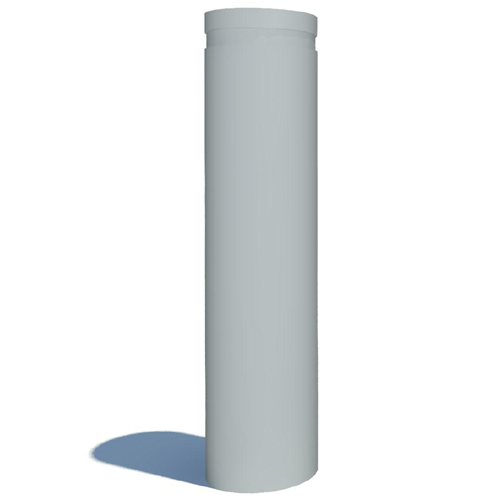

3D Preview
Low Speed Crash Tested Fixed Bollards

30 MPH Low Speed Crash Tested Fixed Bollard - 8" Diameter

It is happening everyday. Up to 20 storefront crashes occur in the US daily. Drivers inadvertently, by design or accident crash into convenience stores, gas stations, propane gas stands, storefronts all across the US. Up until now, there have been no standards set on which type of barrier will prevent crashes like this from happening and causing millions in damage and injuries to innocent pedestrians and patrons.Typically, setting a pipe in the ground and filling it with cement would suffice. The challenge with installing a barrier system with pipe filled with cement is it simply does not work. What type of footing is needed? How big of a bollard is needed? It is a guessing game that has gone on for years. With the new ASTM F3016 low speed crash testing criteria in place, the guessing is over.5000 lb. vehicle @ 10 mph – 4” removable bollard or fixed bollard 36” height5000 lb. vehicle @ 20 mph – 6” removable bollard or fixed bollard 36” height5000 lb. vehicle @ 30 mph – 8” removable bollard or fixed bollard 36” height
Low Speed Crash Tested Fixed Bollards

30 MPH Low Speed Crash Tested Fixed Bollard - 8" Diameter

It is happening everyday. Up to 20 storefront crashes occur in the US daily. Drivers inadvertently, by design or accident crash into convenience stores, gas stations, propane gas stands, storefronts all across the US. Up until now, there have been no standards set on which type of barrier will prevent crashes like this from happening and causing millions in damage and injuries to innocent pedestrians and patrons.Typically, setting a pipe in the ground and filling it with cement would suffice. The challenge with installing a barrier system with pipe filled with cement is it simply does not work. What type of footing is needed? How big of a bollard is needed? It is a guessing game that has gone on for years. With the new ASTM F3016 low speed crash testing criteria in place, the guessing is over.5000 lb. vehicle @ 10 mph – 4” removable bollard or fixed bollard 36” height5000 lb. vehicle @ 20 mph – 6” removable bollard or fixed bollard 36” height5000 lb. vehicle @ 30 mph – 8” removable bollard or fixed bollard 36” height
