Geo Products, LLC EnviroGrid® Geocell Accessories
Geo Products, LLC logo

Geo Products, LLC

EnviroGrid ® is a three-dimensional cellular confinement system that provides a cost effective and sustainable solution to erosion control problems and soil stabilization needs. The geocell confines and strengthens infill material and significantly reduces the amount of infill material needed, allowing for the use of local aggregate. Made with ultrasonically welded HDPE virgin resin, EnviroGrid ® is designed for long term use in critical applications such as base stabilization, slope erosion, channel protection and retaining walls. The first cellular confinement system was developed by the U.S. Army Corps of Engineers for its use in Desert Storm in order to construct roads over soft ground. Since 1990, Geo Products has manufactured the EnviroGrid ® Geocell in the USA in its ISO 9001 certified facility with superior quality control standards. Geo Products specializes in offering a range of high quality polyethylene products, tailored to your needs. The EnviroGrid ® Geocell is manufactured in three different cell sizes or apertures with four different cell heights. The three cell apertures are EGA 20, EGA 30, and EGA 40, all offered in cell heights of 3", 4", 6", and 8". EnviroGrid is shipped in flat panels and expanded into the 3-D honeycomb structure. The standard EnviroGrid section is manufactured from 58 strips of HDPE ultrasonically welded together, resulting in a section length of 29 cells, with each strip being the approved width and 142 inches in length.

Geo Products, LLC logo

Geo Products, LLC

Click to Call

12626 North Houston Rosslyn Rd, Houston, TX, 77086

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files

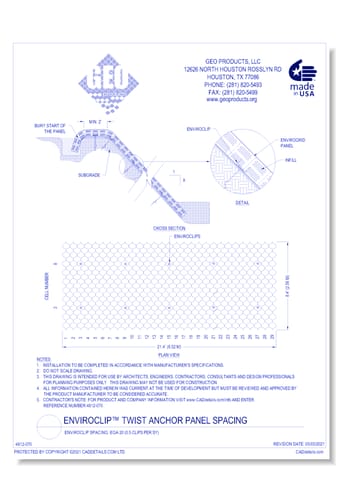

EnviroGrid® Geocell Accessories preview 1
Enviroclip Spacing - EGA 20 (0.5 Clips Per SY)
EnviroGrid® Geocell Accessories preview 1
CAD Preview
EnviroGrid® Geocell Accessories

Enviroclip Spacing - EGA 20 (0.5 Clips Per SY)

The high-strength cell walls of the EnviroGrid® Geocell reinforce the system horizontally and vertically to prevent lateral movement of material, all while maintaining the shape and integrity of the structure
EnviroGrid® Geocell Accessories

Enviroclip Spacing - EGA 20 (0.5 Clips Per SY)

The high-strength cell walls of the EnviroGrid® Geocell reinforce the system horizontally and vertically to prevent lateral movement of material, all while maintaining the shape and integrity of the structure
  • About
  • Education
Asset Category Filters:
  • Select All
  • Media
  • CAD PDF
  • CAD DWF
  • CAD DWG
  • CAD GIF
  • CAD VWX
  • CAD DXF
  • Specs Specs
Products in same Family
VIEWING Enviroclip Spacing - EGA 20 (0.5 Clips Per SY)
Enviroclip Spacing - EGA 20 (0.5 Clips Per SY ...
EnviroClip™ Twist Anchor Installation Steps
EnviroClip™ Twist Anchor Installation Steps
EnviroLock Connection Detail
EnviroLock Connection Detail
Enviroclip Spacing - EGA 20 (1 Clips Per SY)
Enviroclip Spacing - EGA 20 (1 Clips Per SY)
Enviroclip Spacing - EGA 20 (2 Clips Per SY)
Enviroclip Spacing - EGA 20 (2 Clips Per SY)
Enviroclip Spacing - EGA 20 (3 Clips Per SY)
Enviroclip Spacing - EGA 20 (3 Clips Per SY)
Enviroclip Spacing - EGA 30 ( 0.5 Clips Per SY)
Enviroclip Spacing - EGA 30 ( 0.5 Clips Per S ...
Enviroclip Spacing - EGA 30 (1 Clips Per SY)
Enviroclip Spacing - EGA 30 (1 Clips Per SY)
Enviroclip Spacing - EGA 30 (2 Clips Per SY)
Enviroclip Spacing - EGA 30 (2 Clips Per SY)
Enviroclip Spacing - EGA 30 (3 Clips Per SY)
Enviroclip Spacing - EGA 30 (3 Clips Per SY)
