GSky Plant Systems, Inc. Versa Wall XT
GSky Plant Systems, Inc. logo

GSky Plant Systems, Inc.

Founded in 2004, GSky Plant Systems, Inc. is headquartered in Delray Beach, FL. GSky is an award-winning global leading provider of living green walls throughout North America, Europe, Australia, & the Middle East. Founded on the basis of the explosive growth of green technology, GSky's living green walls are irrigated by low-flow drip emitters on programmable controllers & in many cases can be equipped with recycling components to create an extremely efficient low water usage system.

GSky Plant Systems, Inc. logo

GSky Plant Systems, Inc.

Click to Call

25 Seabreeze Ave, Suite 404, Delray Beach, Florida, 33483

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
Versa Wall XT preview 1

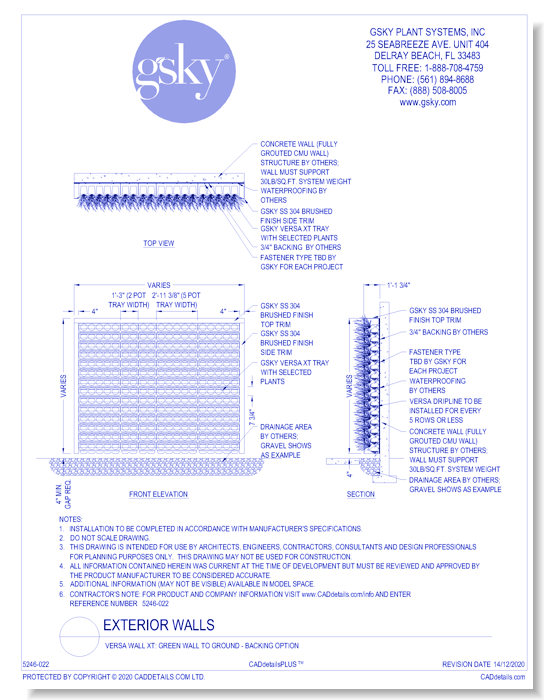

Versa Wall XT: Green Wall To Ground - Backing Option
Versa Wall XT preview 1

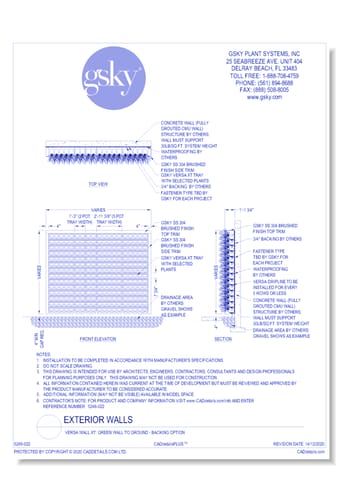

CAD Preview
Versa Wall XT

Versa Wall XT: Green Wall To Ground - Backing Option

Our patented modular tray system, the Versa Wall® XT, is easy to install and maintain. Using 1-gallon potted plants, there is no need for the longer growth time that pre-planted systems have so it’s start-to-finish time frame can be much less. Also, this system is easy to keep looking full with easy plant replacement and it has the ability to re-design.It is our most water efficient system since each plant gets its own water and doesn’t require constant watering. This system is suitable for any climate, but in northern climates with extreme temperature changes, it is recommended as a seasonal wall storing or removing plants for the winter.
Versa Wall XT

Versa Wall XT: Green Wall To Ground - Backing Option

Our patented modular tray system, the Versa Wall® XT, is easy to install and maintain. Using 1-gallon potted plants, there is no need for the longer growth time that pre-planted systems have so it’s start-to-finish time frame can be much less. Also, this system is easy to keep looking full with easy plant replacement and it has the ability to re-design.It is our most water efficient system since each plant gets its own water and doesn’t require constant watering. This system is suitable for any climate, but in northern climates with extreme temperature changes, it is recommended as a seasonal wall storing or removing plants for the winter.
