Hunter Industries ECO-MAT® Subsurface Irrigation
Hunter Industries logo

Hunter Industries

Hunter Industries is among the world's leading manufacturers of water-efficient irrigation products. Hunter's valves, controllers and sprinklers provide healthy, aesthetically pleasing landscapes worldwide. Hunter helps ensure the success of all of its partners - from distributors to contractors to the end-use consumer - by providing a wide range of technical support programs, education / training initiatives, and business development initiatives. Hunter: The Irrigation Innovators.

Hunter Industries logo

Hunter Industries

Click to Call

1940 Diamond Street, San Marcos, CA, 92078

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
ECO-MAT® Subsurface Irrigation preview 1 ECO-MAT® Subsurface Irrigation preview 2

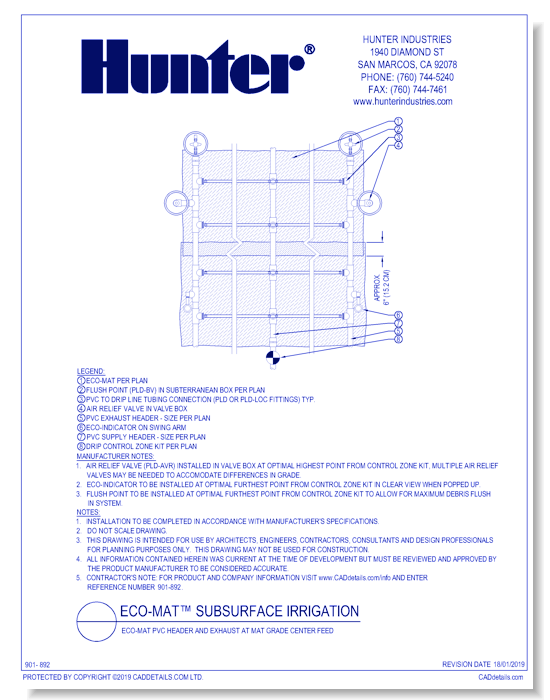

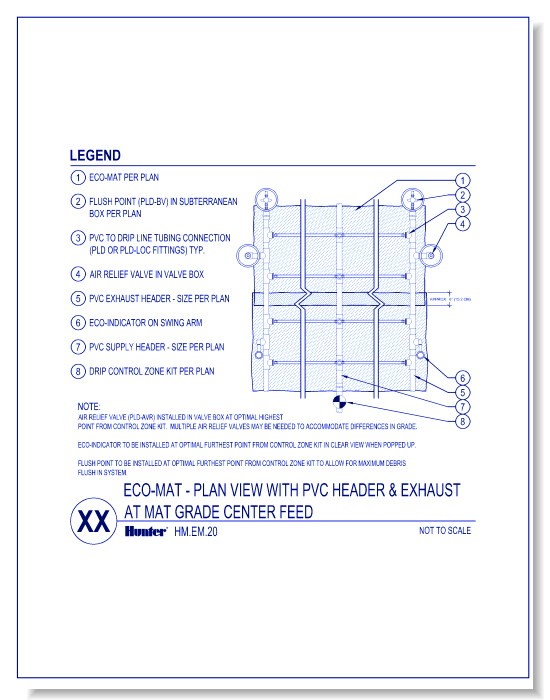

ECO-MAT PVC Header and Exhaust at Mat Grade Center Feed
ECO-MAT PVC Header and Exhaust at Mat Grade Center Feed
ECO-MAT® Subsurface Irrigation preview 1
ECO-MAT® Subsurface Irrigation preview 2

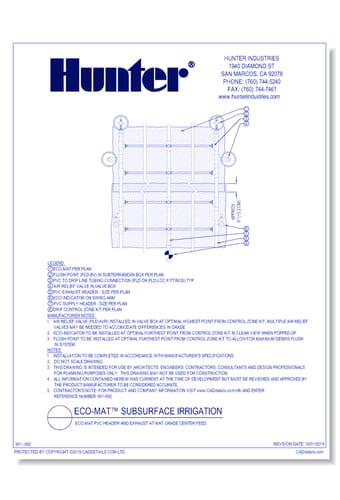

CAD Preview
Mfg DWG Preview (Imperial)
ECO-MAT® Subsurface Irrigation

ECO-MAT PVC Header and Exhaust at Mat Grade Center Feed

Designed to suit a variety of hard-to-irrigate areas, the Eco-Mat uses a specifically engineered combination of inline emitter tubing and fleece, which evenly disperses water from under the surface. Eco-Mat consists of Hunter’s specialized fleece wrapped inline emitter tubing (Eco-Wrap), attached to specialized fleece. Eco-Mat is then installed in the soil to be irrigated, directly under the plant material. When water is emitted, the Eco-Wrap fills and in turn, saturates the Eco-Mat. The Eco-Mat not only makes subsurface drip a viable solution, it makes it a great one. Since there’s never water on the surface, high-traffic turf areas in places like amusement parks, city parks, and commercial complexes can be used all day without the need to budget time for overhead irrigation or worry about vandalism. The Eco-Mat is also proven to be a highly efficient solution for green roof irrigation. Green roofs use specially engineered soils or growing media that allow for drainage at a much higher rate than natural soil. It is difficult to grow plants in this kind of growing media because it holds very little water. The Eco-Mat provides water to 100% of the irrigated area and holds 1/2 gallon of water in every square yard of mat. When the Eco-Mat is saturated, it provides a reservoir of water from which the plants can draw.
ECO-MAT® Subsurface Irrigation

ECO-MAT PVC Header and Exhaust at Mat Grade Center Feed

Designed to suit a variety of hard-to-irrigate areas, the Eco-Mat uses a specifically engineered combination of inline emitter tubing and fleece, which evenly disperses water from under the surface. Eco-Mat consists of Hunter’s specialized fleece wrapped inline emitter tubing (Eco-Wrap), attached to specialized fleece. Eco-Mat is then installed in the soil to be irrigated, directly under the plant material. When water is emitted, the Eco-Wrap fills and in turn, saturates the Eco-Mat. The Eco-Mat not only makes subsurface drip a viable solution, it makes it a great one. Since there’s never water on the surface, high-traffic turf areas in places like amusement parks, city parks, and commercial complexes can be used all day without the need to budget time for overhead irrigation or worry about vandalism. The Eco-Mat is also proven to be a highly efficient solution for green roof irrigation. Green roofs use specially engineered soils or growing media that allow for drainage at a much higher rate than natural soil. It is difficult to grow plants in this kind of growing media because it holds very little water. The Eco-Mat provides water to 100% of the irrigated area and holds 1/2 gallon of water in every square yard of mat. When the Eco-Mat is saturated, it provides a reservoir of water from which the plants can draw.
