Hunter Industries HCC Commercial Irrigation Controller
Hunter Industries logo

Hunter Industries

Hunter Industries is among the world's leading manufacturers of water-efficient irrigation products. Hunter's valves, controllers and sprinklers provide healthy, aesthetically pleasing landscapes worldwide. Hunter helps ensure the success of all of its partners - from distributors to contractors to the end-use consumer - by providing a wide range of technical support programs, education / training initiatives, and business development initiatives. Hunter: The Irrigation Innovators.

Hunter Industries logo

Hunter Industries

Click to Call

1940 Diamond Street, San Marcos, CA, 92078

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
HCC Commercial Irrigation Controller preview 1 HCC Commercial Irrigation Controller preview 2

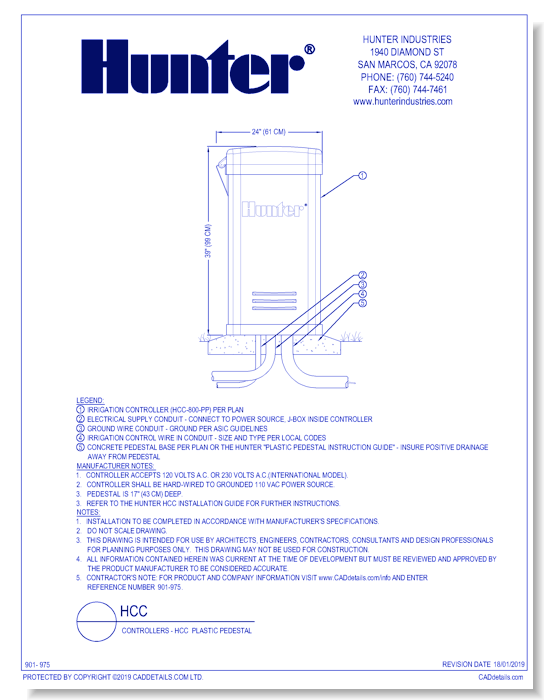

Controllers - HCC Plastic Pedestal

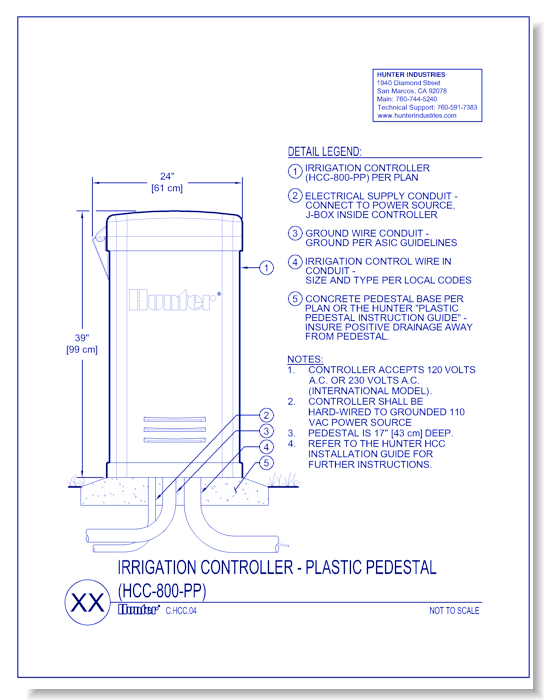

Controllers - HCC Plastic Pedestal
HCC Commercial Irrigation Controller preview 1
HCC Commercial Irrigation Controller preview 2
CAD Preview
Mfg DWG Preview (Imperial)
HCC Commercial Irrigation Controller

Controllers - HCC Plastic Pedestal

The next-generation HCC controller brings the powerful Wi-Fi-based irrigation management capabilities of the industry-leading Hydrawise™ platform to high-end residential, commercial, and public-sector projects. The HCC provides a range of convenient features to monitor larger projects — all with the simple click of a button. The HCC combines robust features of the popular ICC2 controller with automatic, weather-based daily adjustments of Hydrawise programming to create a smart and economical solution for commercial landscape management. HCC can control up to 54 zones and effectively operate any two stations simultaneously. The controller’s convenient modular design allows for rapid expandability with the same 4-, 8-, and 22-station output modules as the ICC2. Engineered with a prewired SmartPort®, HCC is also compatible with Hunter’s ROAM and ROAM XL remotes, allowing for fast and reliable manual operation in the field from long-range distances without the need for a smartphone. With a built-in milliamp sensor, troubleshooting faulty wires is a breeze. Easily install an HC Flow Meter to accurately monitor flow, prevent wasted water, and avoid damaged landscapes.
HCC Commercial Irrigation Controller

Controllers - HCC Plastic Pedestal

The next-generation HCC controller brings the powerful Wi-Fi-based irrigation management capabilities of the industry-leading Hydrawise™ platform to high-end residential, commercial, and public-sector projects. The HCC provides a range of convenient features to monitor larger projects — all with the simple click of a button. The HCC combines robust features of the popular ICC2 controller with automatic, weather-based daily adjustments of Hydrawise programming to create a smart and economical solution for commercial landscape management. HCC can control up to 54 zones and effectively operate any two stations simultaneously. The controller’s convenient modular design allows for rapid expandability with the same 4-, 8-, and 22-station output modules as the ICC2. Engineered with a prewired SmartPort®, HCC is also compatible with Hunter’s ROAM and ROAM XL remotes, allowing for fast and reliable manual operation in the field from long-range distances without the need for a smartphone. With a built-in milliamp sensor, troubleshooting faulty wires is a breeze. Easily install an HC Flow Meter to accurately monitor flow, prevent wasted water, and avoid damaged landscapes.
  • About
  • Education
  • Media
Asset Category Filters:
  • Select All
  • CAD PDF
  • CAD DWF
  • CAD DWG
  • CAD DWG
  • CAD GIF
  • CAD VWX
  • CAD GIF
  • CAD DXF
  • Specs DOCX
Products in same Family
VIEWING Controllers - HCC Plastic Pedestal
Controllers - HCC Plastic Pedestal
Controllers - HCC Stainless Steel Wall Mount
Controllers - HCC Stainless Steel Wall Mount
Controllers - HCC Stainless Steel Pedestal
Controllers - HCC Stainless Steel Pedestal
Controllers - HCC Plastic Wall Mount
Controllers - HCC Plastic Wall Mount
Controllers - HCC Metal Wall Mount
Controllers - HCC Metal Wall Mount
Controllers - HCC Metal Pedestal
Controllers - HCC Metal Pedestal
