Rain Bird Corporation Cluster Control Unit
Rain Bird Corporation logo

Rain Bird Corporation

Rain Bird Corporation is one of the leading irrigation manufacturers in the world. A privately held company founded in 1933, we have over 4,000 product offerings, and have been awarded over 130 patents. The first Rain Bird patent was granted in 1935, and that original impact sprinkler was designated a historic landmark in 1990.

Rain Bird Corporation logo

Rain Bird Corporation

Click to Call

6991 E. Southpoint Road, Tucson, AZ, 85706

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
Cluster Control Unit preview 1

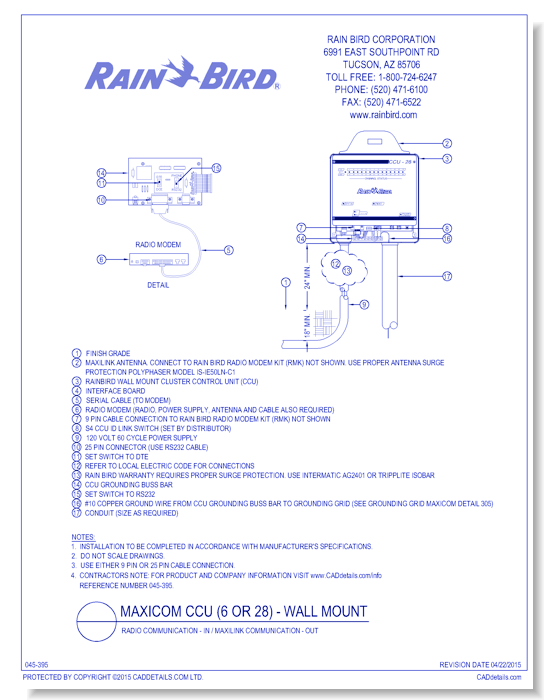

CCU Cluster Control Unit, Wall-Mount, Radio Primary Communication, Link Secondary Communication
Cluster Control Unit preview 1

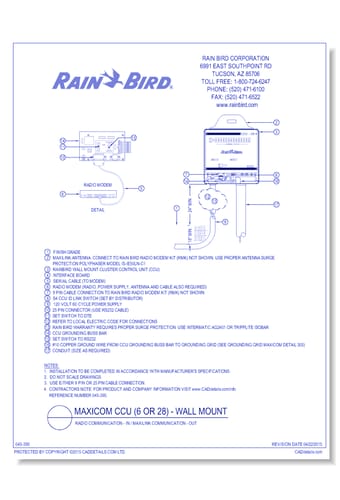

CAD Preview
Cluster Control Unit

CCU Cluster Control Unit, Wall-Mount, Radio Primary Communication, Link Secondary Communication

Maxicom2® Cluster Control Units (CCU) serve as an interface between the central controller and field satellites (ESP-MC-SAT Series) on the Maxicom2® system. The CCU acts as the system's “computer-in-the-field,” allowing control of hundreds of sites from one Central Controller. Schedules are automatically downloaded from the Central Controller to the Cluster Control Unit at a user-entered time. Commands are then sent from the CCU to the appropriate field satellites to control irrigation throughout the irrigation day. The CCU monitors site conditions constantly and takes action as needed; managing flow demand, pausing or canceling irrigation in the event of rain, etc., or locating and isolating the causes of excessive flow (broken heads or piping breaks). Irrigation data and information (flow logs, alarms, actions taken, etc.) are automatically uploaded to the Central Controller at a user entered time, usually after the irrigation cycle is complete. The CCU can monitor, communicate to, and manage as many as 28 ESP-Satellite controllers or other field devices via a two-wire (hardwire), wireless radio or Ethernet communications method.
Cluster Control Unit

CCU Cluster Control Unit, Wall-Mount, Radio Primary Communication, Link Secondary Communication

Maxicom2® Cluster Control Units (CCU) serve as an interface between the central controller and field satellites (ESP-MC-SAT Series) on the Maxicom2® system. The CCU acts as the system's “computer-in-the-field,” allowing control of hundreds of sites from one Central Controller. Schedules are automatically downloaded from the Central Controller to the Cluster Control Unit at a user-entered time. Commands are then sent from the CCU to the appropriate field satellites to control irrigation throughout the irrigation day. The CCU monitors site conditions constantly and takes action as needed; managing flow demand, pausing or canceling irrigation in the event of rain, etc., or locating and isolating the causes of excessive flow (broken heads or piping breaks). Irrigation data and information (flow logs, alarms, actions taken, etc.) are automatically uploaded to the Central Controller at a user entered time, usually after the irrigation cycle is complete. The CCU can monitor, communicate to, and manage as many as 28 ESP-Satellite controllers or other field devices via a two-wire (hardwire), wireless radio or Ethernet communications method.
