Rain Bird Corporation Flow Sensors and Transmitters
Rain Bird Corporation logo

Rain Bird Corporation

Rain Bird Corporation is one of the leading irrigation manufacturers in the world. A privately held company founded in 1933, we have over 4,000 product offerings, and have been awarded over 130 patents. The first Rain Bird patent was granted in 1935, and that original impact sprinkler was designated a historic landmark in 1990.

Rain Bird Corporation logo

Rain Bird Corporation

Click to Call

6991 E. Southpoint Road, Tucson, AZ, 85706

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
Flow Sensors and Transmitters preview 1

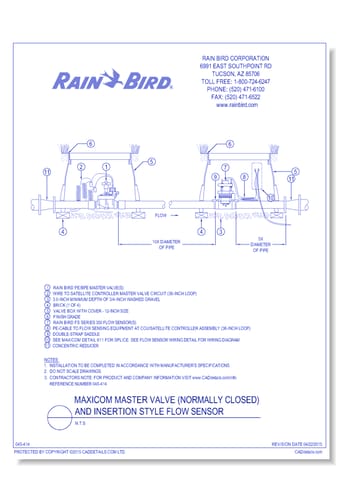

FS350 Insert Flow Sensor, Normally Closed Master Valve
Flow Sensors and Transmitters preview 1
CAD Preview
Flow Sensors and Transmitters

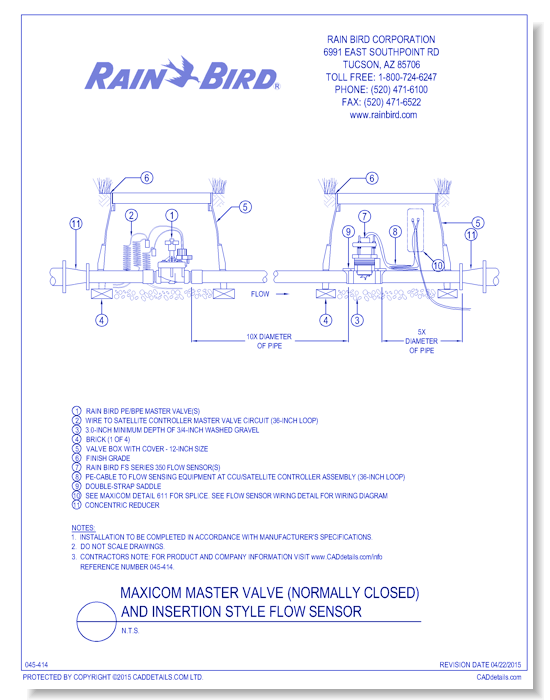

FS350 Insert Flow Sensor, Normally Closed Master Valve

Rain Bird flow sensors send flow data to central control or stand-alone controller systems for precise and accurate flow monitoring. Rain Bird flow sensors are available with NPT and BSP ends. Rain Bird flow sensors enable you to capitalize on the advantages of Flow Management functionality. Use Rain Bird Flow Sensors with Rain Bird Maxicom², SiteControl and IQ v2.0 central control applications, or in standalone systems using Rain Bird ESP-LXD, ESP-LXME and ESP-LXMEF controllers.
Flow Sensors and Transmitters

FS350 Insert Flow Sensor, Normally Closed Master Valve

Rain Bird flow sensors send flow data to central control or stand-alone controller systems for precise and accurate flow monitoring. Rain Bird flow sensors are available with NPT and BSP ends. Rain Bird flow sensors enable you to capitalize on the advantages of Flow Management functionality. Use Rain Bird Flow Sensors with Rain Bird Maxicom², SiteControl and IQ v2.0 central control applications, or in standalone systems using Rain Bird ESP-LXD, ESP-LXME and ESP-LXMEF controllers.
