Thomas Steele State Street™ Courtyard Table
Thomas Steele logo

Thomas Steele

Thomas Steele is the industry's leading manufacturer of commercial site furnishings. The custom-made benches, tables, trash receptacles and planters add beauty and functionality to any outdoor design project. Look to Thomas Steele for your handcrafted site furnishings.

Thomas Steele logo

Thomas Steele

Click to Call

1080 Uniek Drive, Waunakee, WI, 53597

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
State Street™ Courtyard Table preview 1

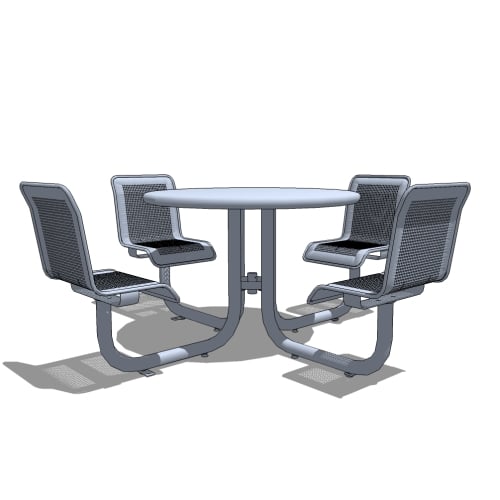

State Street™ Courtyard Table with 4 Backed Seats
State Street™ Courtyard Table with 4 Backed Seats

State Street™ Courtyard Table preview 1
MFG CAD Preview

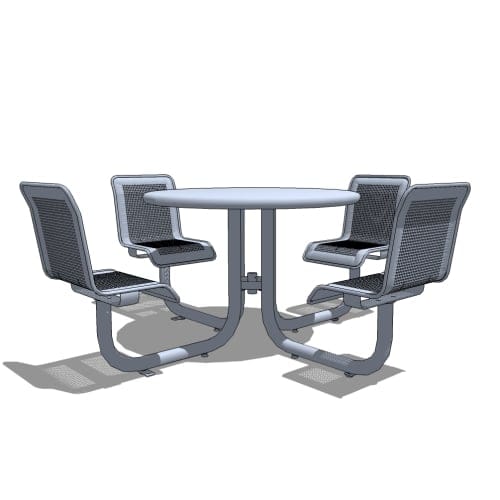

3D Preview
State Street™ Courtyard Table

State Street™ Courtyard Table with 4 Backed Seats

The graceful lines of the State Street™ table are compatible with any setting. Tables are offered with a selection of 3, 4, 5, and 6 perforated metal seats. The 3 seat table offers a handicapped accessible option. State Street’s™ perforated metal seats are available with backs or flat. The table can be powder coated in a wide variety of colors. Our standard color choices are displayed on the Materials/Color tab above. Mounting options include: Free-standing, In-Ground Individual Post, or Surface Mount Individual Post. See drawings of these mounting options under the Materials/Colors tab above. State Street™ table materials are as follows: Top: 42” Diameter, 12 Gauge Spun Steel with Reinforced 1” ‘C’ Rolled Edge; Frame: ¼ x 2 ½” Steel Channel and 2 3/8” Diameter Tubing; Seating: 5/8” Diameter Tubing and 14 Gauge Perforated Metal.
State Street™ Courtyard Table

State Street™ Courtyard Table with 4 Backed Seats

The graceful lines of the State Street™ table are compatible with any setting. Tables are offered with a selection of 3, 4, 5, and 6 perforated metal seats. The 3 seat table offers a handicapped accessible option. State Street’s™ perforated metal seats are available with backs or flat. The table can be powder coated in a wide variety of colors. Our standard color choices are displayed on the Materials/Color tab above. Mounting options include: Free-standing, In-Ground Individual Post, or Surface Mount Individual Post. See drawings of these mounting options under the Materials/Colors tab above. State Street™ table materials are as follows: Top: 42” Diameter, 12 Gauge Spun Steel with Reinforced 1” ‘C’ Rolled Edge; Frame: ¼ x 2 ½” Steel Channel and 2 3/8” Diameter Tubing; Seating: 5/8” Diameter Tubing and 14 Gauge Perforated Metal.
